Product Overview

Introduction

The ML7008F-LFT is a fully-featured BERT that can be configured as 16 transmitters and 8 receivers of 224G, 116G and 56G PAM4 and 106.25G NRZ and their derivative dynamic rates.

The ML7008F-LFT is compliant with the IEEE P802.3dj, and OIF CEI 112G LR.

The transmitters support all standard test patterns mandated by the specs such as PRBS13Q, PRBS31Q, etc. while the advanced transmitters support SSPRQ.

The ML7008F-LFT supports transmitter and receiver equalization up to 40dB to overcome signal integrity impairments due to channel losses or reflections.

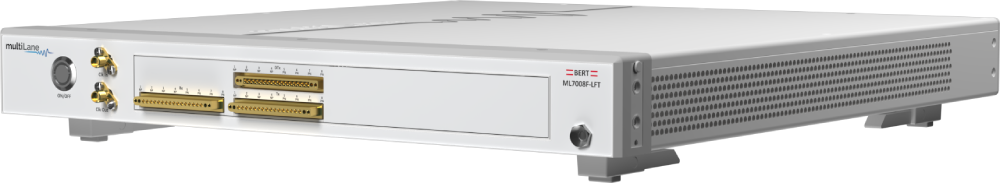

The ML7008F-LFT is available as a standalone instrument or as a module in the MultiWave Test Platform (MWTP), the MW7008F-LFT.

When fitted in the MWTP, two MW7008F-LFTs enable users to perform bi-directional traffic testing of transceivers from different vendors and of Active Copper Cables, Active Electrical Cables, and Direct Attach Copper.

Key Features

Transmit

• Data Rates: up to 232Gbps/116Gbaud (backward compatible with 800G and 400G).

• Fixed Rates:26.5625, 53.125, 106.25(PAM4).

• Supported rates:

  26-> 29(PAM4)

  49->58(PAM4)

  97->116(PAM4)

• Ability to tune the bit rate in steps of 100kbps and find the Rx PLL locking margin.

• Independent control of inner eye levels.

• Supports Gray coding in rate 53 Gbaud.

• 6 or 3-tap pre- and post-emphasis linear FFE.

• Independent PLL per Lane.

• Link Training for automatic optimal Tx Taps equalization for optimal BER.

• Real hardware pre- and post-FEC on 100G, 400G, 800G blocks.

• Available patterns:

1. In PAM4:

   PRBS_9_4/_11/_13Q/_15Q/_23/_31Q/_58

   SQ16

2. In NRZ:

   PRBS_9_4/_11/_13/_15/_23/_31/_58

   SQ16

• Pre coder Feature.

High Drive Transmitters (DTx)

• Data Rates: up to 116 Gbaud (backward compatible with 800G and 400G).

• Fixed Rates:26.5625, 53.125, 106.25(PAM4) 106.25(NRZ).

• Supported rates:

  26→ 29(PAM4)

  49→ 58(PAM4)

  97→ 116(PAM4)

• Ability to tune the bit rate in steps of 100kbps and find the Rx PLL locking margin.

• Independent control of inner eye levels.

• Supports Gray coding at rate 53 Gbaud.

• 3/6/10 taps pre- and post-emphasis linear FFE.

• Available patterns:

1. In PAM4:

   PRBS_9_4/_11/_13Q/_15Q/_23/_31Q/_58/SSRPQ

   SQ16

2. In NRZ:

   PRBS_9_4/_11/_13/_15/_23/_31/_58/SSRPQ

   SQ16

Receive

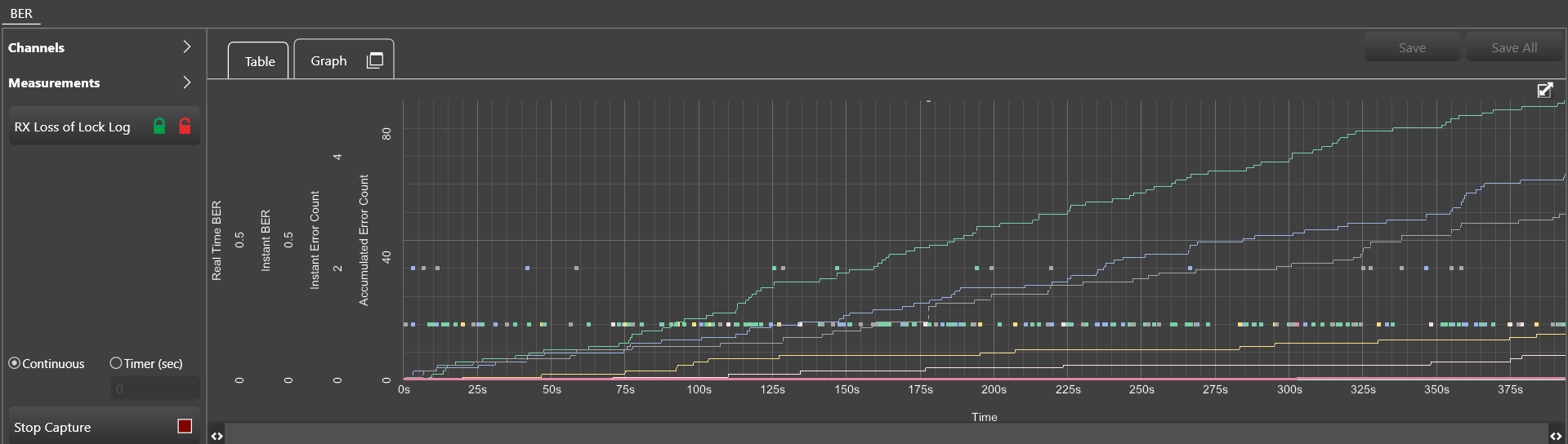

• SNR monitoring over time.

• Independent CDR on each lane.

• Independent PLL per lane.

• PAM histogram monitor.

• Error-detection on following patterns:

  RBS_9_4/_11/_13Q/_15Q/_23/_31Q /58

  Auto Detect

• LOS indicators.

• Up to 40dB equalization.

• Block Error Ratio (BLER Measurements).

• Extended Reach Feature.

• Pre coder Feature.
