ML4079ELN PCIe BERT
- Series: BERT - Brand: Te-lead
Introduction
The ML4079ELN is a fully featured 800G BERT that can be configured for eight channels of 1-1.5Gbps; 2.55-5.9Gbps; 7.3-11Gbps; 24-32Gbps and 41-66Gbps NRZ and 21.25-21.75GBaud; 26.5625-36GBaud and 44-66GBaud PAM4.
The transmitters support all standard test patterns mandated by IEEE802.3ck stress testing and OIF such as PRBS13Q, PRBS31Q, etc. Tx can also be programed to output a user-defined pattern.
The ML4079ELN supports transmitter and receiver equalization up to 34dB to overcome signal integrity impairments due to channel losses or reflections.
Additionally, users can opt to programmatically add an ISI channel equivalent to a frequency-dependent attenuator with 1 to 9dB loss at Nyquist.
The ML4079ELN is specifically for linear optic, PCIe Gen 3.0, 5.0 , 6.0 and 7.0, and Active and Passive Cable with high Rx equalization capabilities.
Key Features
Transmit
Data Rates: 1-1.5Gbps; 2.55-5.9Gbps; 7.3-11Gbps; 24-32Gbps and 41-66Gbps NRZ and 21.25-21.75GBaud; 26.5625-36GBaud and 44-66GBaud PAM4.
Ability to tune the bit rate in steps of 100kbps and find the RX PLL locking margin
DFE and CTLE Equalization
Independent control of inner eye levels
Up to 800 mVpp controllable Tx Amplitude swing
Supports Gray coding
Error injection
3-tap Pre- and Post-emphasis or 7-tap linear FFE
Real hardware FEC. SER and FEC measurements and margin available on channels individually as well as on 100G, 400G and 800G blocks.
Available patterns:
PRBS7/9/13/15/23/31
PRBS13Q, PRBS31Q
Square wave
Burst and random noise injection.
Receive
SNR monitoring over time.
PAM histogram monitor.
Error-detection on following patterns:
PRBS 7/9/13/15/23/31
PRBS13Q and PRBS31Q
Automatic pattern detection.
LOS indicators.
Up to 34dB Equalization Capabilities.

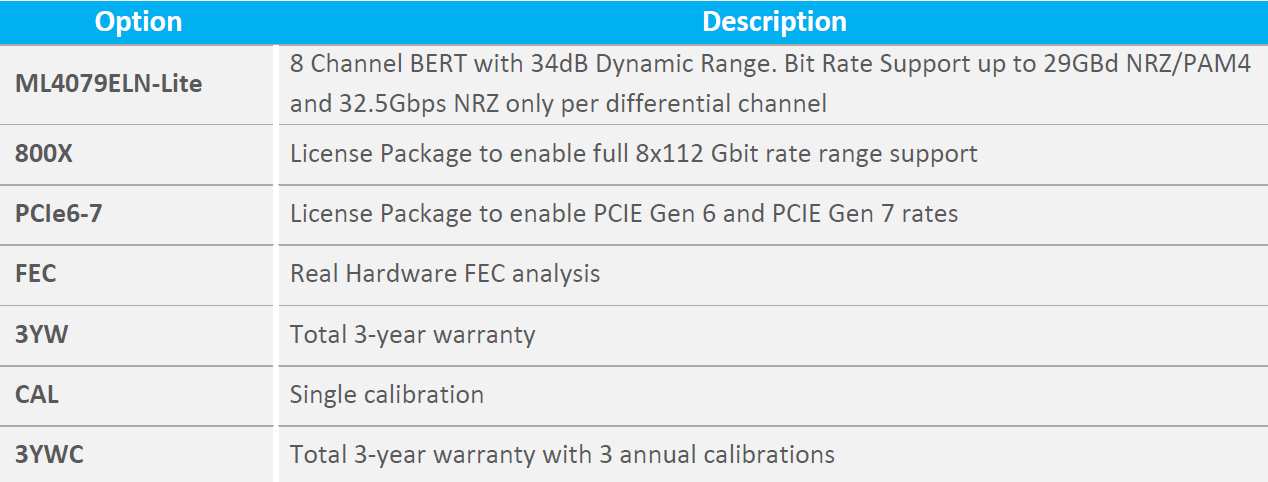

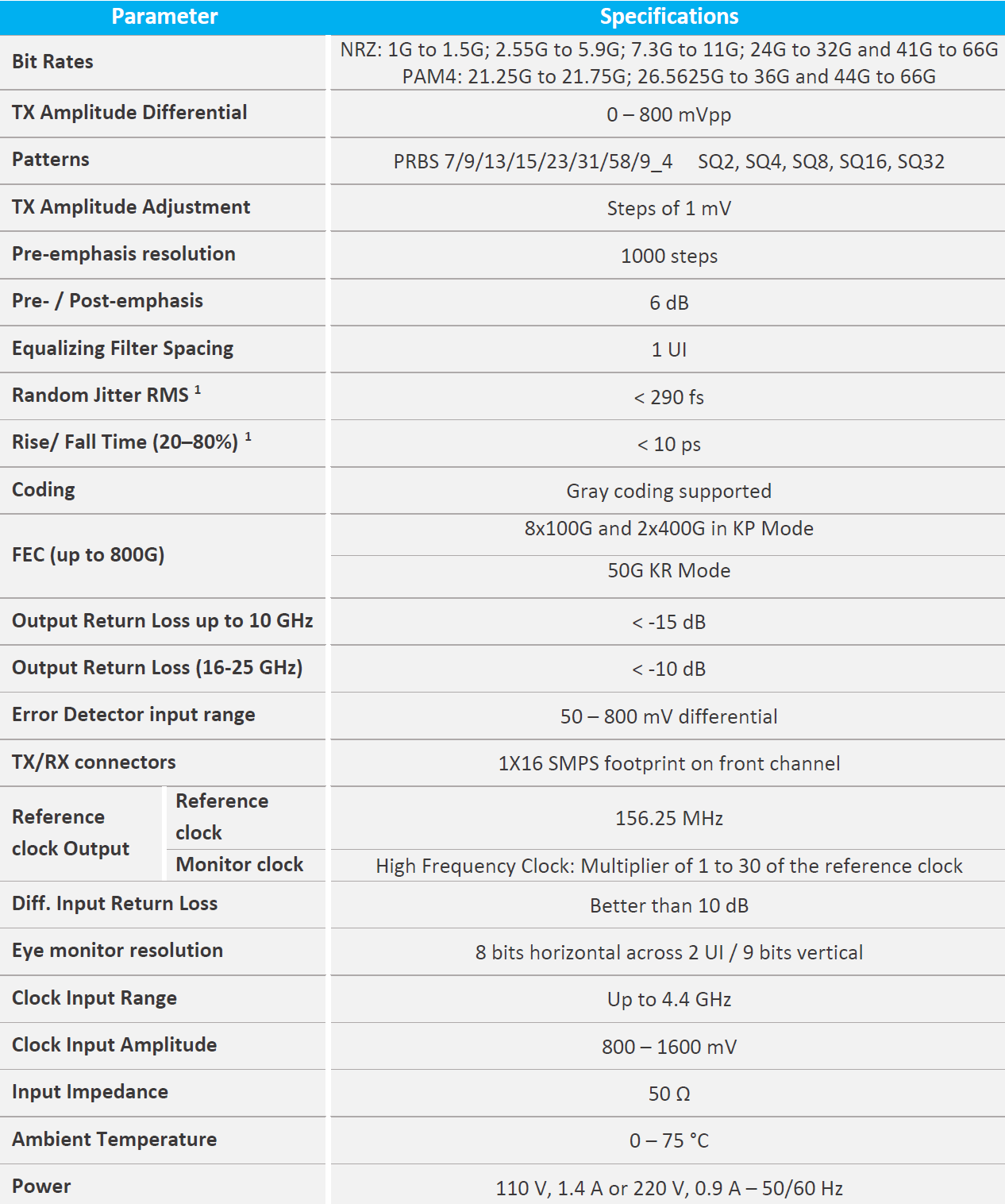

Target Applications
Pluggable and Linear Pluggable Optics Stress testing.
PCIe Gen 3.0, 5.0, and 6.0 and 7.0 testing.
Testing of copper and fiber-optic transmission lines.
Active and Passive Cable Testing.
