800G BERT
- Series: BERT - Brand: Te-lead
The ML4079E is a full featured 800G BERT that can be configured as eight channels of 23-29 and 46-58 GBaud PAM4 or 23 – 29 and 46 – 58 Gbps NRZ.
The transmitters support all standard test patterns mandated by IEEE and OIF such as PRBS13Q, SSPRQ, PRBS31Q, etc. Additionally, the user may program the TX to output a user-defined pattern.

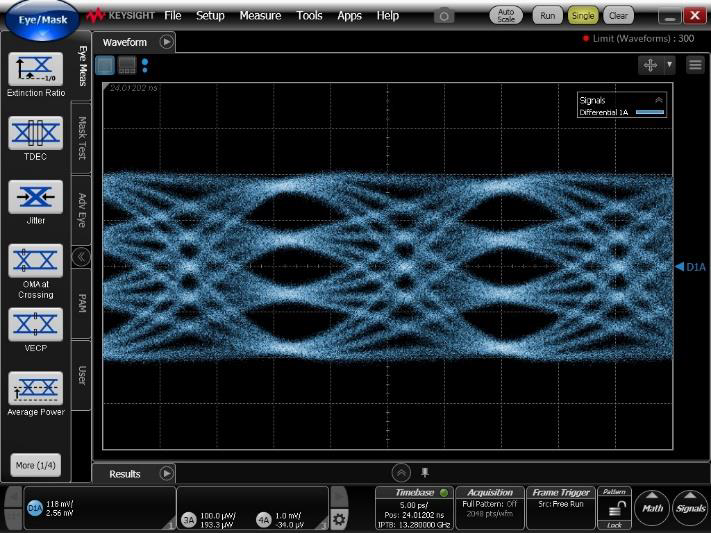

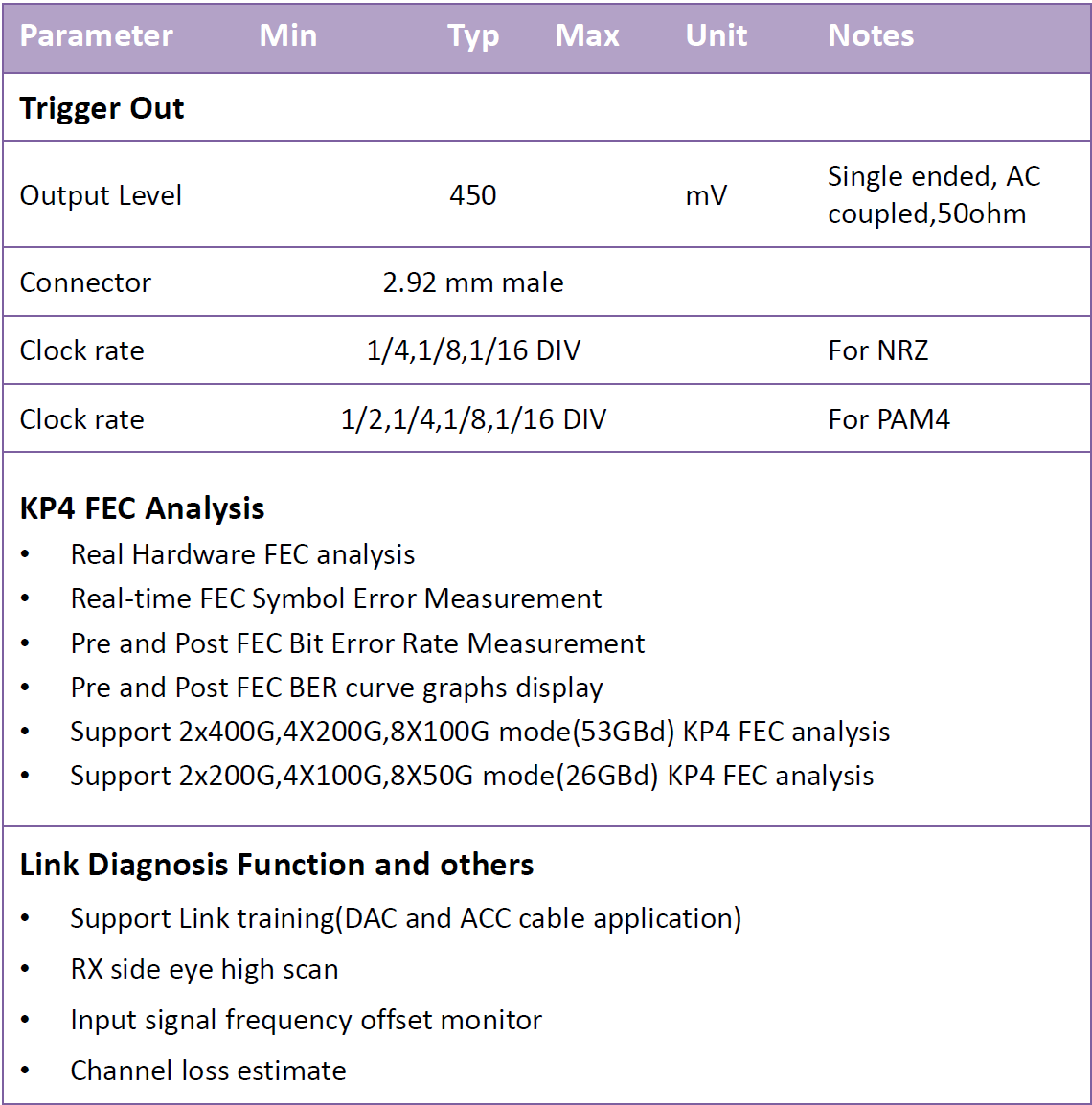

The ML4079E supports real hardware FEC, with the following FEC modes:
• 400G line KP4
• 100G line KP1
• 100G line KR1

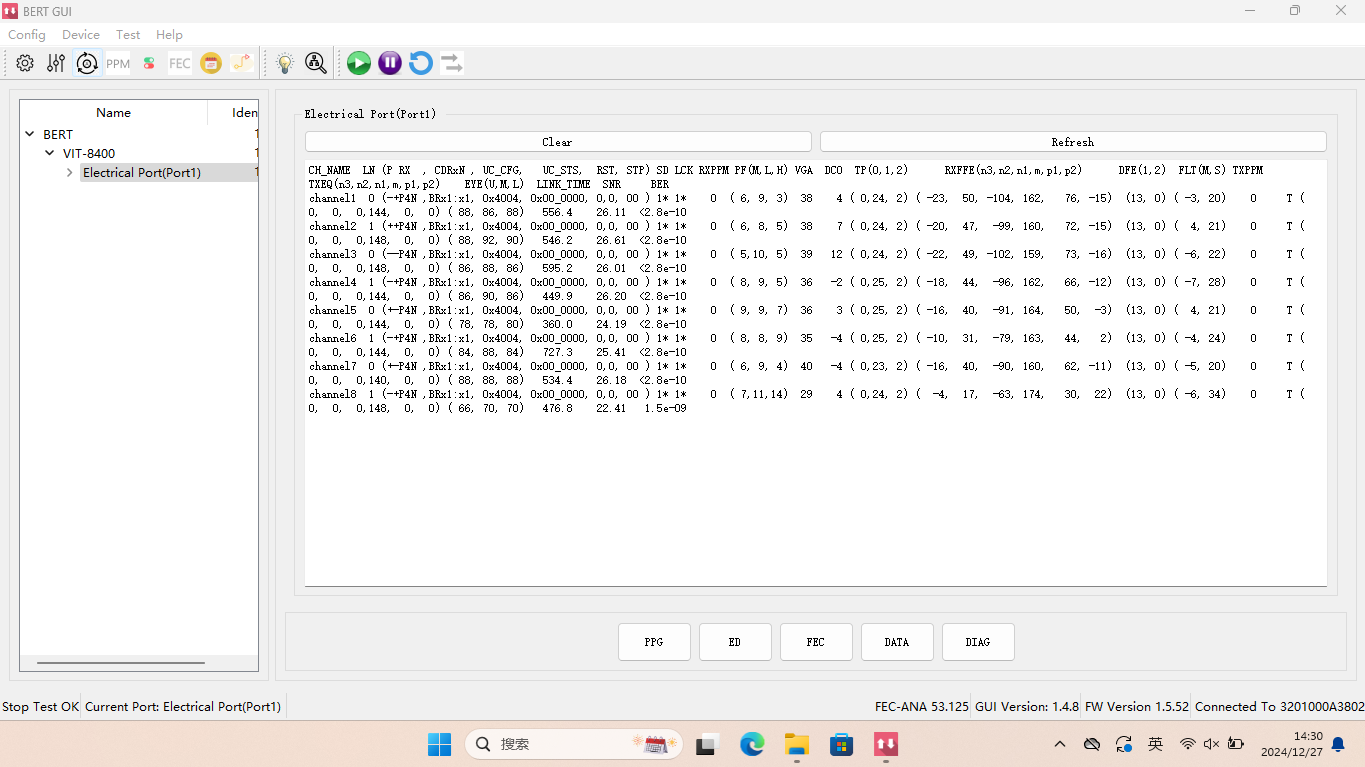

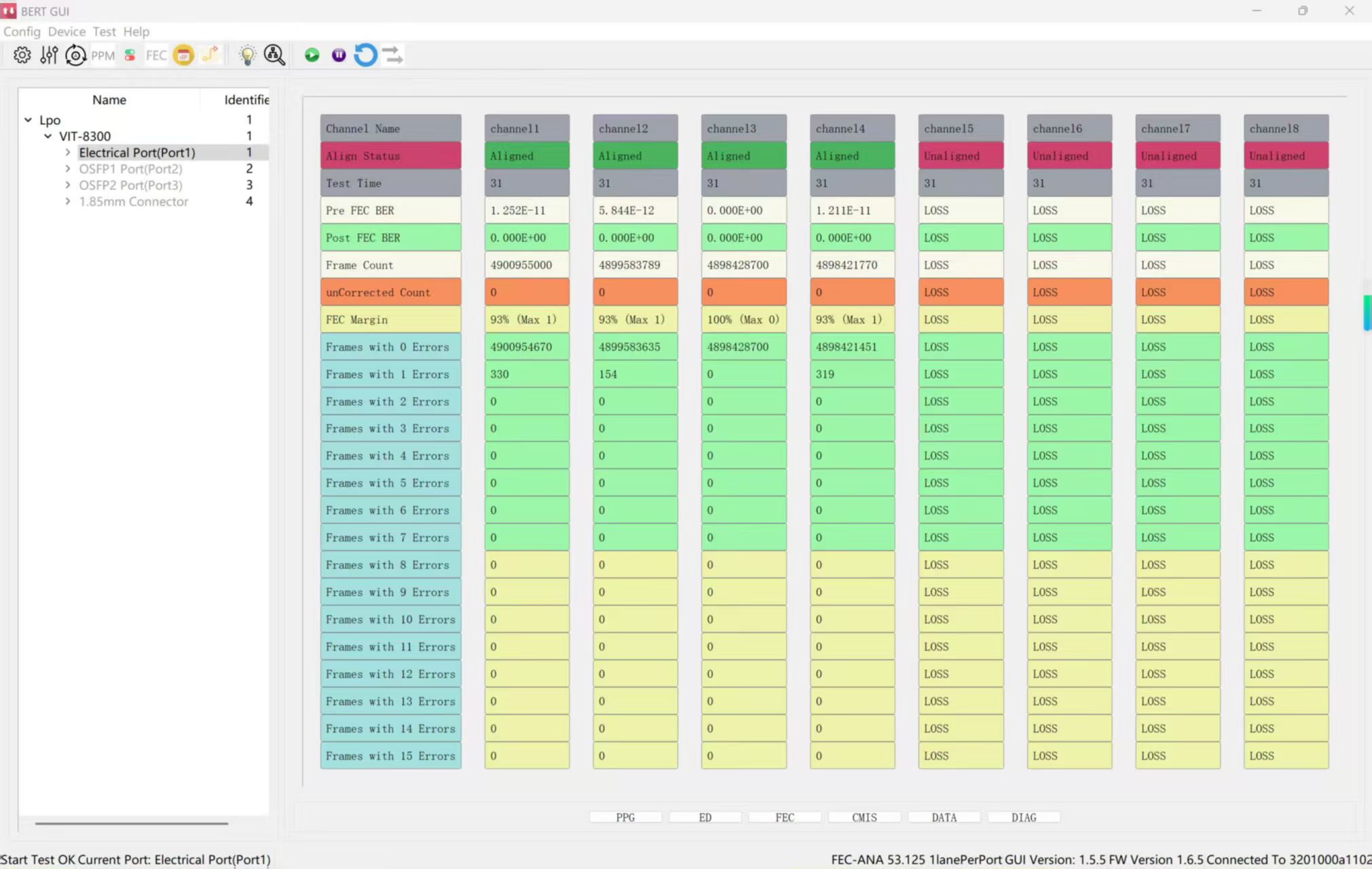

Once the FEC is enabled, the user will be able to see the post-FEC BER which indicates the bit error rate after enabling FEC and the amount of errored bits being corrected in real time.
In addition, the ML4079E supports transmitter and receiver equalization to overcome signal integrity impairments due to channel losses or reflections. This capability can also be used to optimize link performance and thus minimize power consumption.

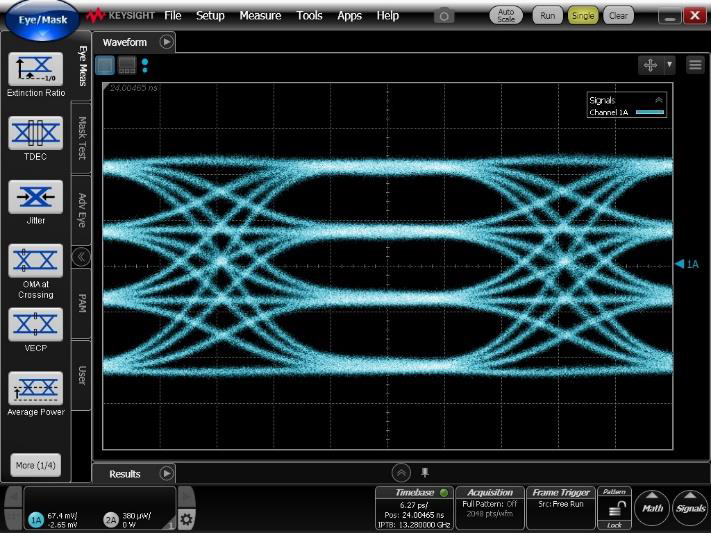

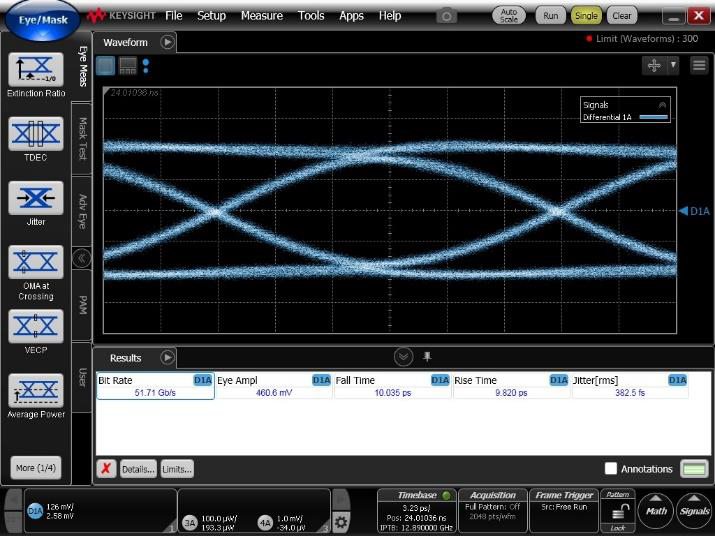

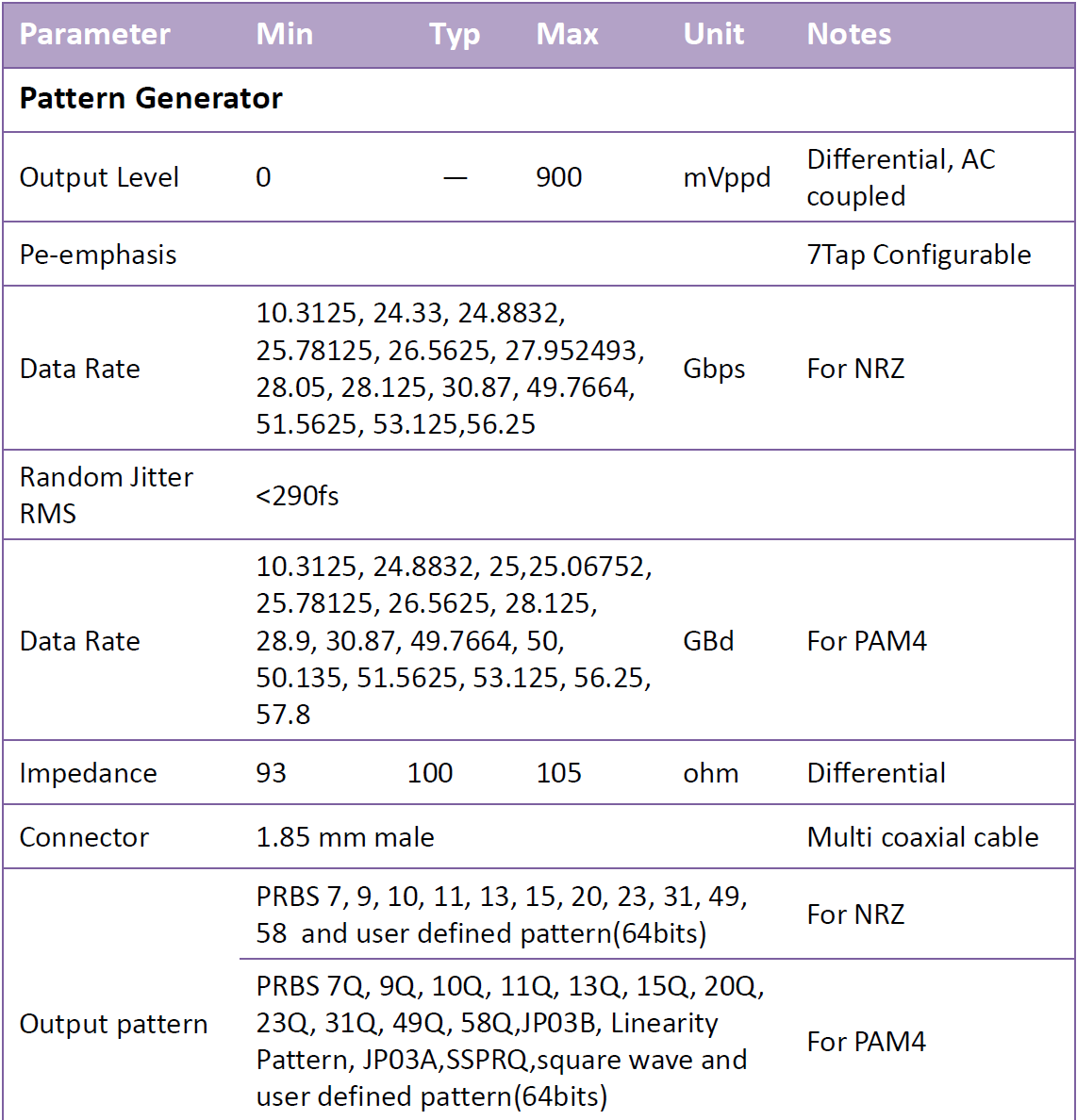

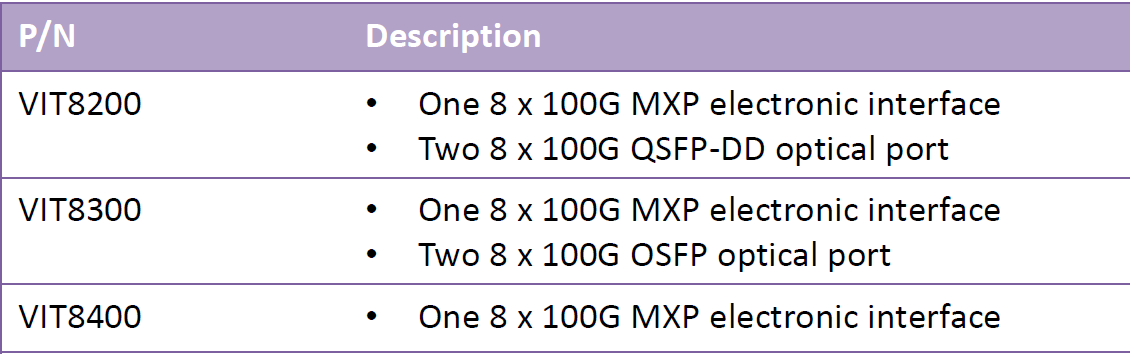

Transmit
• Data Rates: 23-29 & 46-58 GBaud (116 Gbps)
• Ability to tune the bit rate in steps of 100 kbps and find the RX PLL locking margin
• Independent control of inner eye levels
• Supports Gray coding and polarity inversion
• Error injection
• 3-tap Pre- and Post-emphasis or 7-tap linear FFE
• Real hardware FEC. Pre- and post-FEC BER/SER, and FEC margin available on channels individually as well as on 100G, 400G, 800G blocks
Available patterns:
• PRBS 7/9/11/13/15/16/23/31/58
• PRBS13Q, PRBS31Q

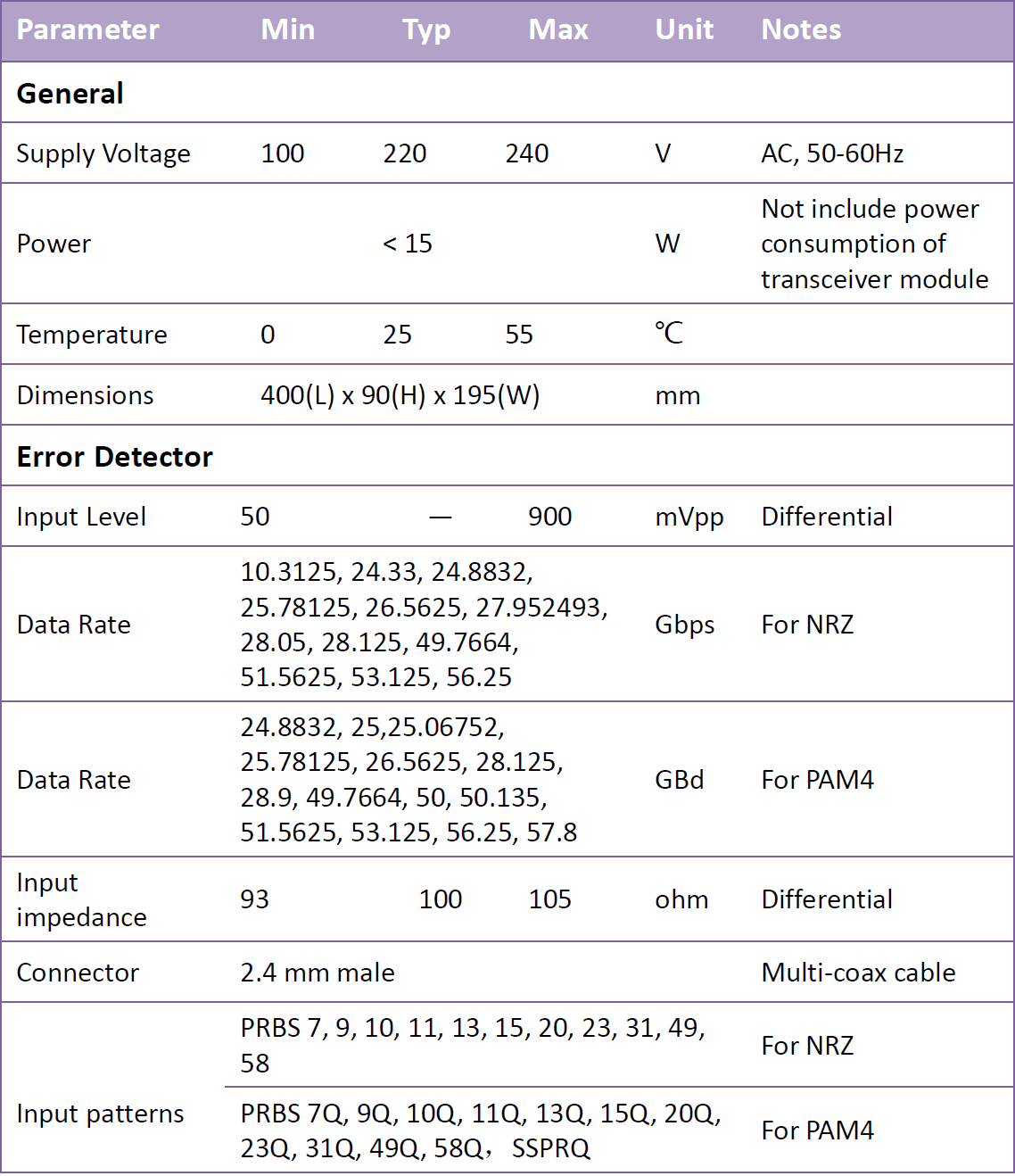

Receive
• SNR monitoring over time
• PAM histogram monitor
• Error-detection on following patterns:
- PRBS 7/9/11/15/16/23/31
- PRBS13Q and PRBS31Q
• Automatic pattern detection
• LOS indicators
• Supported Rx equalization capabilities: DFE, Reflection Canceller, Level-Dependent Equalizer, Multipath Interference Canceller
General
• LabView driver and Python wrapper available.
• API libraries with documentation
