Product Overview

The QCR Series Clock Recovery Instrument delivers high-performance clock extraction from high-speed data streams, ensuring clean and stable signals essential for advanced testing environments.

Engineered with a low-jitter architecture and precision phase-locking capabilities, the QCR Series provides a robust and scalable solution for validating and characterizing next-generation communication systems.

When paired with the QCA Series High-Speed Communication Analyzer, it forms a powerful test platform for comprehensive signal integrity analysis and system-level debugging.

APPLICATIONS

• Optical communication testing

• High-speed electrical interconnects

• Electrical high-speed IO characterization

• High-volume test of high-speed ICs

• Validation testing

• Transceiver and optical engine manufacturing test

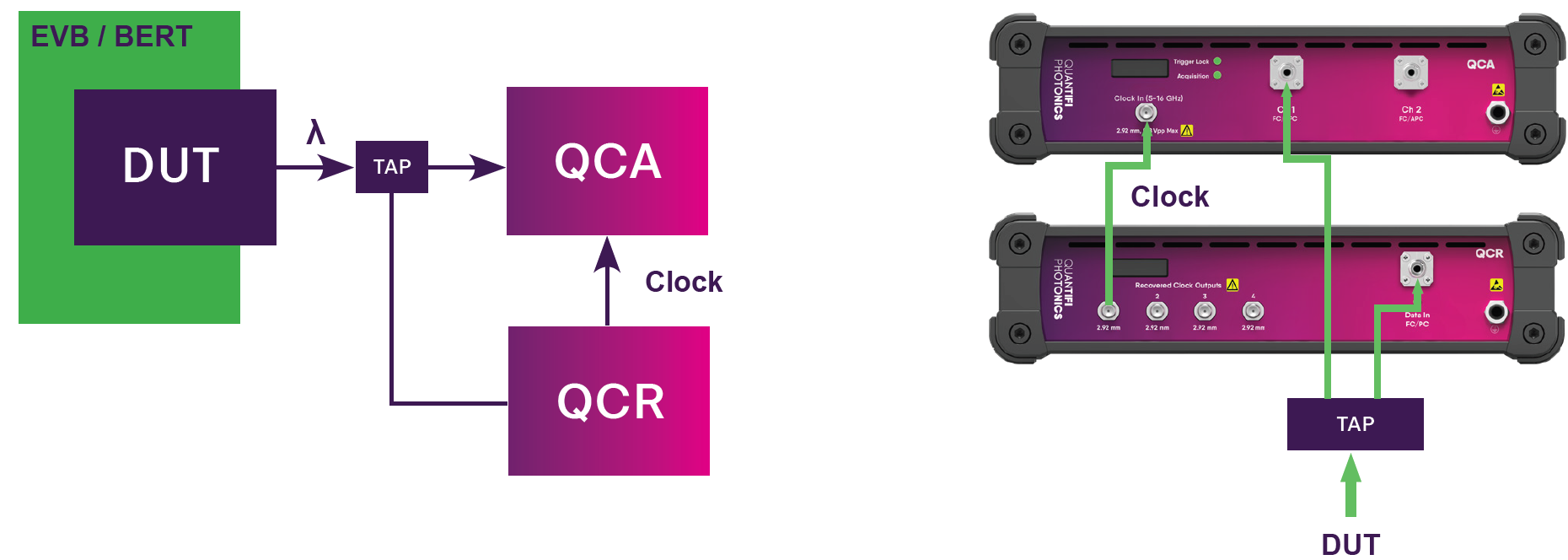

Use case 1: Triggering using a recovered clock and optical splitter (tap)

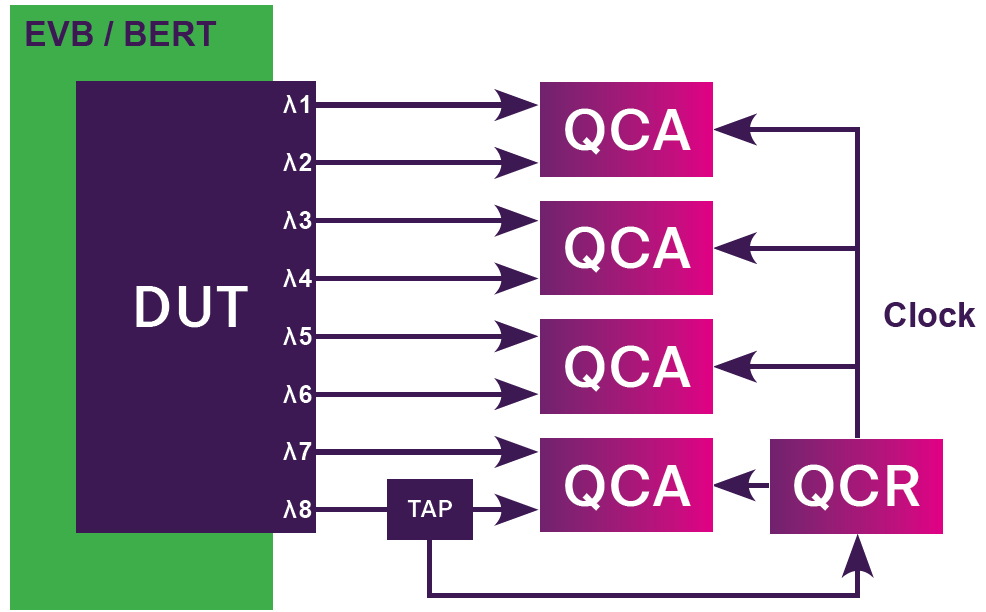

Use case 2: Triggering using a recovered clock and 8-channel DUT
