PCIe3.0/4.0 high speed cable tester
- Series: High speed communication tester - Brand: Te-lead
MFCT-PCIe4R uses flexible adapter design to accommodate different types of cables, such as 40 Lanes PCIe4.0, 8I SlimSAS4, USB4. System automatically self-configures depending on the type of the adapter used. Use of the adapters avoids additional RF cables and associated signal degradation.
Typical Applications:
l PCIe4.0/3.0 cable and raise card testing
l SlimSAS/Slimline/MiniSAS cable testing
l Backplane cable testing
l Specific multi-channel cable testing
Key Features:
MFCT-PCIe4R is powerful cable tester. It has many features to facilitate high-throughput industrial testing. These include:
l More than 40 high speed data lanes(1.25-28.05Gbps) are tested in parallel
l Interchangeable adapters plug in the Motherboard, without complex RF cable connections
l BER test for each lanes
l Low speed channels pass through test

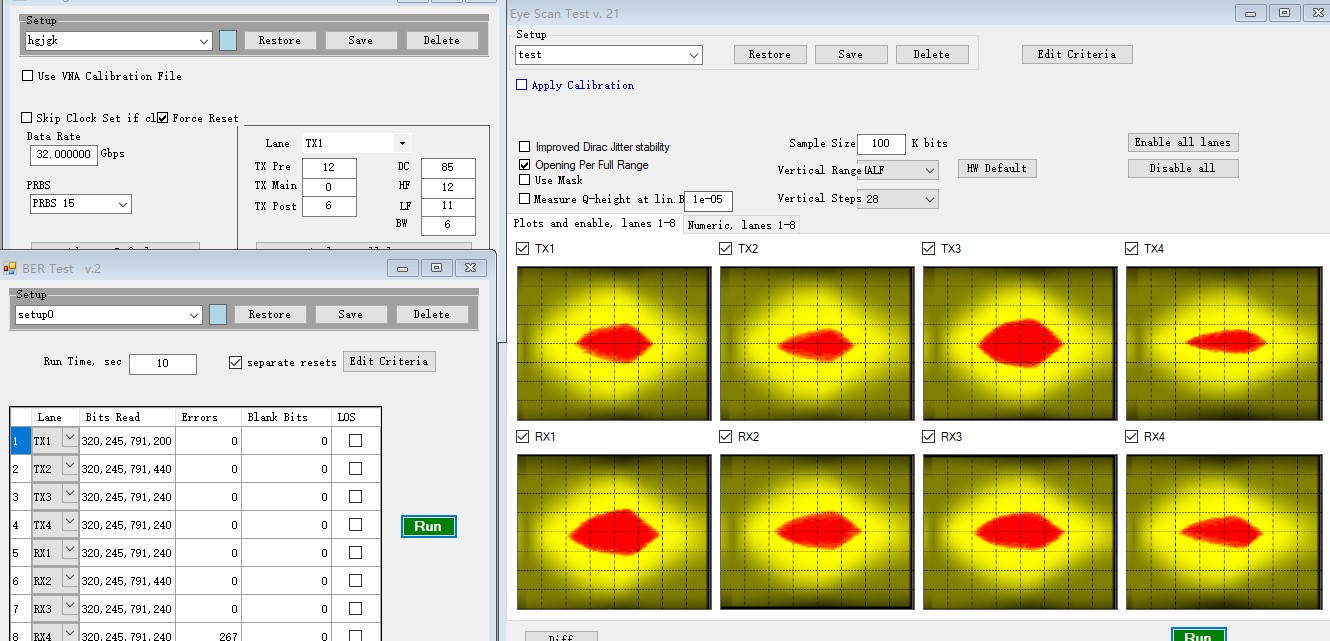

l Fast eye monitor, including eye mask compliance and eye mask margin tests.
l Software can be run in either Production mode or Engineering mode.

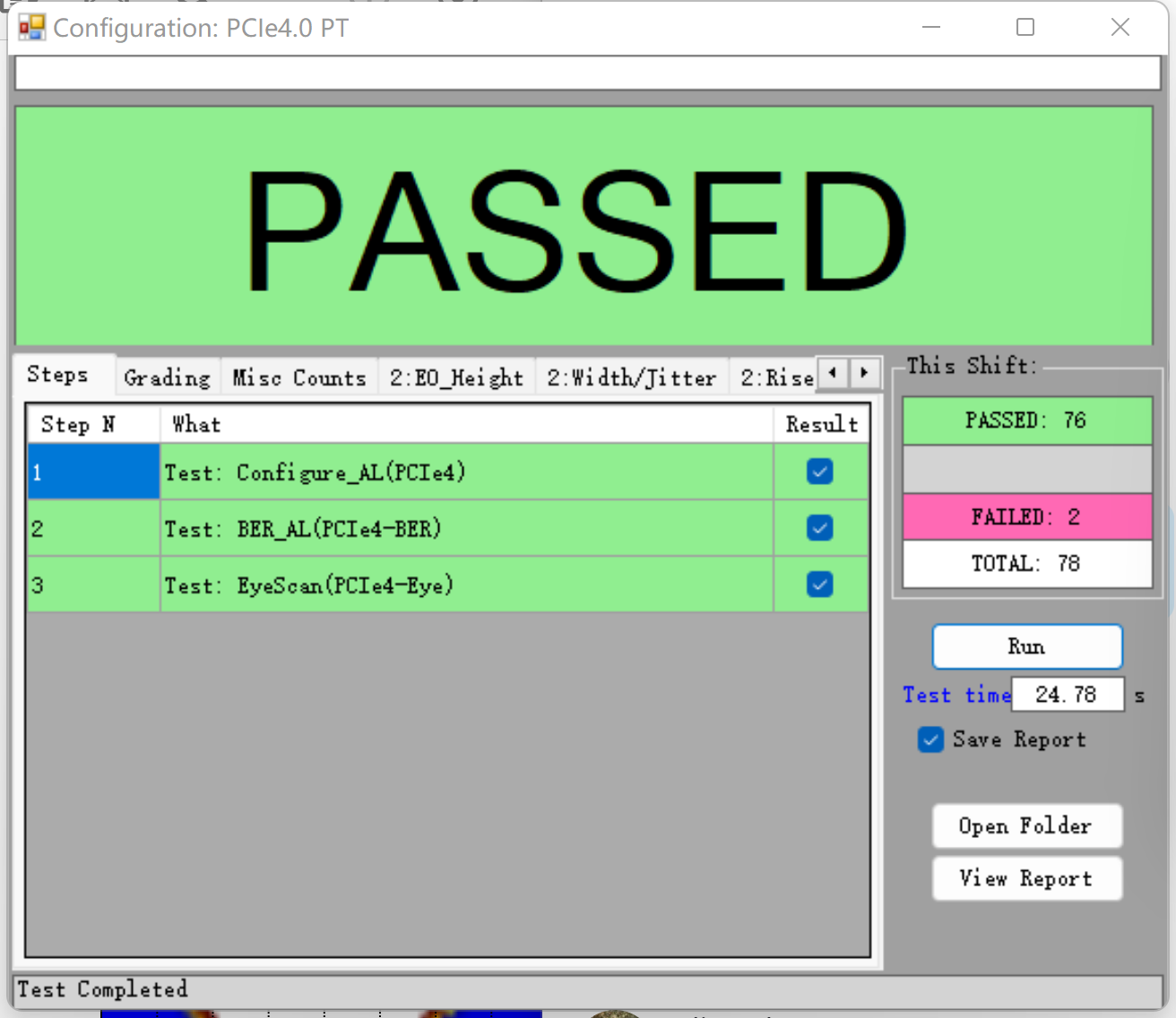

- Production mode provides simple interface, ease of control, pass/fail/marginal result at the end of the Production Sequence.
- Engineering mode allows full tester configuration and production test sequence configuration based on the testing requirements
l Adapter life cycle alarm
l Test cable quantity count at each shift
l Test results and test configurations can be stored in the centralized database
l User-configurable test report
Function extension option:
The tester function also can be extended.
l Generate Insertion loss factor based on VNA result to measure IL.
l DC resistance test on same machine with different connector channels.
l Power consumption monitor for active DUT
l Active cable testing
Parameter | Specification |
Support test range | 1.25Gbps-28.05Gbps |
Baud rate tolerance | +/- 100ppm |
Support Modulation | NRZ |
Output differential Pk to Pk | 30mVpp - 1200mVpp |
Support test pattern | PRBS7,9,11,15,23,31,58, JP03A/JP03B, Mixed frequency, Low and Square wave |
Tx Equalization | 3 tap FIR with programmable level and pre-emphasis |
Input differential voltage | 0Vpp - 1200mVpp |
Rx Equalization | DC Gain, LF, HF and BW |
Eye Mask | USB, HDMI, PCIe4 and user define |
Eye Monitor parameters | Eye height, Eye Width, Eye opening, Jitter, Rise/Fall time, Mask margin |
Support products | PCIe3.0/4.0 cable, raiser card, |
Low speed lanes pass through | Yes |
Model | Description |
MFCT-PCIe4R | Multi-Function cable tester |
E-PCIE-40/40R | PCIe4.0 40 Lanes adapter |
E-PCIE-32 | PCIe4.0 32 Lanes adapter |
E-MCIO74P-8I | MCIO 74P 8I adapter |
E-SFF8654-8I | SFF 8654 8I adapter |
E-SFF8654-2X4I | SFF 8654 4I adapter |
Note: Other adapters can be designed based on customer’s requirement. | |
